Brass Corner Radiator Valves

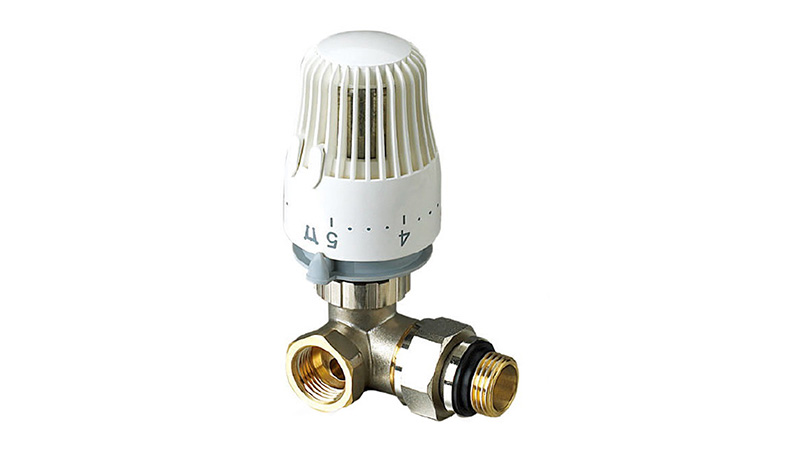

Brass Corner Radiator Valves N10141005 is specially designed for corner pipeline, easily operation with thermostatic head which is  produce with high precision, can sense subtle temperature and adjust automatically. PN16 working pressure fits most radiators.. The user can adjust and set the temperature according to the requirements of the room temperature. In this way, the room temperature is kept constant, and the problems of unbalanced pipe water volume and uneven room temperature of the upper and lower layers of the single-pipe system are avoided. It can not only improve the comfort of indoor thermal environment, but also realize energy saving. The standard bore size design allows better flow to reduce cavitation and pressure drop. 100% leakage test for each brass gate valve ensures reliable quality.

Brass radiator valve is a kind of brass valve that used house radiator, used to control temperature of radiator by adjusting the flow rate. Brass radiator valve is normally composed of a temperature controller (thermostatic head),  brass valve body and connecting parts. The core component of brass radiator valve is the sensor unit, that is, the thermostatic head which can sense the change of the surrounding environment temperature to produce volume changes, drive the valve stem to produce displacement, and then adjust the water volume of the radiator to change the heat dissipation of the radiator. The setting temperature of the thermostatic valve can be adjusted manually, and the thermostatic valve will automatically control and adjust the water of the radiator according to the set requirements.In order to achieve the purpose of controlling the indoor temperature.

different functions and applications require different valves, for example,  brass thermostatic radiator valves, programmable radiator valves, brass TRV radiator valves, brass angled radiator valves, brass corner radiator valves.

depending on pipeline pressure needs, the brass radiator valves are designed with valve wall thickness and port sizes. We have low pressure brass radiator valves, middle pressure brass radiator valve, high press radiator valve, super-high pressure radiator valve. Low and middle pressure brass radiator valve are mainly used for domestic and plumbing applications.

There are three different types of brass radiator valves:

Thread types differ from markets and applications: BSP threads for Europe and NPT threads for North America, also other metric threads, which you must confirm before buying brass radiator valves.

We currently work with HPb57-3 brass radiator valves for most customers in Europe and Asia, CW617N brass radiator valves for Europe, C377700 and lead free brass for North America.

1. Before installing brass radiator valve, clean and remove any objects from the pipes (in particular bits of sealing and metal), which could obstruct and block the valves.

2. Ensure that both connecting pipes either side of the valve (upstream and downstream) are aligned (if they are not the brass radiator valves may not work correctly).

3. Make sure that the two sections of the pipe (upstream and downstream) match, the brass radiator valve will not absorb any gaps. Any distortions in the pipes may affect the tightness of the connection, the working of the valve and can even cause a rupture.

HPb57-3, HPb58-3, HPb59-1, HPb59-3 are most common materials used for China brass radiator valve, which are acceptable for most countries in the world, except for those customers have special requirements.

Rough color is brass radiator valve body sandblasted and without plating.

Electroplating (nickel-plating and chrome-plating) can enhance the corrosion resistance of brass radiator valves, increase hardness, prevent abrasion, improve conductivity, smoothness, heat resistance.

1. Brass raw materials are bought from local suppliers in forms of brass bars.

2. Brass bars are cut into smaller pieces with different sizes according to order requirements, heated with natural gas.

3. The heated brass bars are forged by forging machines, Out-comings are semi-finished rough brass radiator valve bodies.

4. The rough brass radiator valve bodies are trimmed and cut off unnecessary parts.

5. The rough brass radiator valve bodies are washed with sanding machines, to clean the dirty and oils during production.

6. The rough brass bodies are machined by CNC machinery for threads and dimensions.

7. The machined  brass radiator valve bodies are nickel- or chrome-plated.

8. The brass valves are ready for delivery after final finished goods quality inspection.

Brass radiator valve packing is very important for safe transport and brand appearance.

We pack brass radiator valves in small inner boxes, then put into outer cartons, finally load in wooden pallets.

It will protect the goods well and can avoid damages and wet.

We also pack as per customers' OEM designs.

Our test laboratory equips with various devices for brass radiator valve quality inspect and control, as well as new product development.

Equipment include material spectrometer analyzer, flow rate tester, torque tester, body resistance tester, endurance tester, high-low temperature tester.

These equipment enable us to analyze brass radiator valve material compositions and type tests according to related standards, ensure our brass radiator valves are correctly designed and produced.
